DJI Dock 3: Revolutionising Autonomous Drone Operations

DJI Dock 3: Revolutionising Autonomous Drone Operations

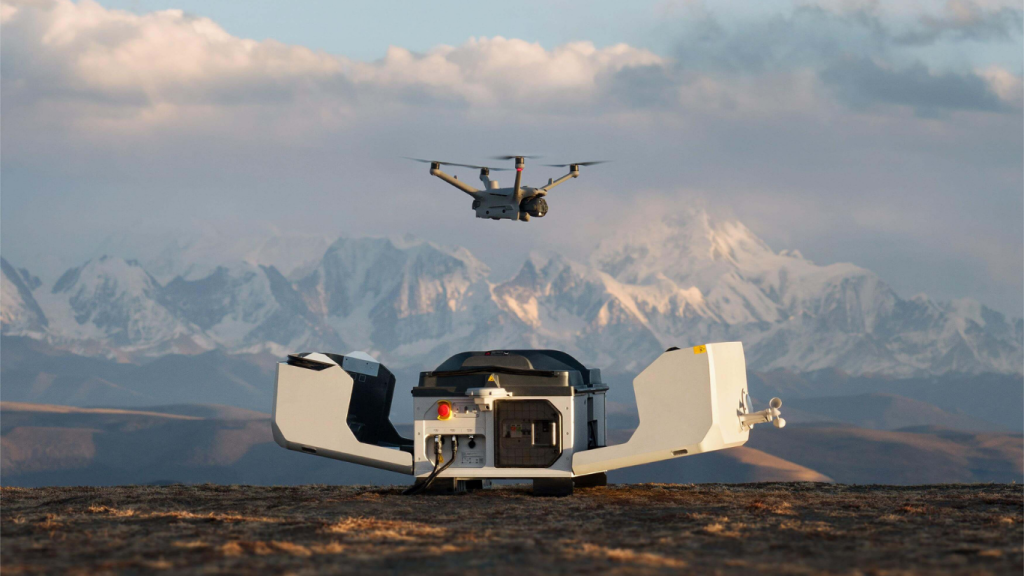

The DJI Dock 3 represents a groundbreaking advancement in drone technology as DJI’s first true “Drone in a Box” solution with vehicle mounting support. Designed specifically for 24/7 remote operations in any environment, this innovative system meets the needs of public safety, emergency response, construction, and inspection organisations across Ireland. With its robust design and cutting-edge features, the DJI Dock 3 takes remote drone deployment to unprecedented levels of efficiency and reliability.

DJI Dock 3 Features

Built for Extreme Environments

• Temperature Resistance: Operates in temperatures ranging from -20°C to 50°C (-4°F to 122°F) with a preheating function for conditions as cold as -30°C (-22°F)
• Weather Protection: Features IP56 protection for the dock and IP55 protection for the Matrice 4D Series drones
• Wind Resistance: Maintains stable flight in winds up to 12 m/s (27 mph)
• Anti-Icing Capability: Equipped with low-noise, anti-icing propellers for reliable operations during freezing rain

Dual-Drone Rotation System

• Continuous Operations: Innovative dual-dock deployment system allows drones to rotate between missions, eliminating downtime
• Intelligent Task Management: Special takeover pattern prevents drone-to-drone collisions and ensures operational safety
• Cloud-Based Management: Integration with DJI FlightHub 2 enables remote mission scheduling and monitoring
• Automated Hovering Rotation: Two drones can provide continuous real-time aerial footage transmission with seamless transitions

Flexible Deployment Options

• Vehicle-Mounted Mobility: DJI’s first dock designed for mobile vehicle-mounted deployment, ideal for search and rescue, disaster relief, or long-distance inspections
• Fixed Deployment: Enhanced by D-RTK 3 Relay Fixed Deployment Version for operations up to 25 km
• Signal Enhancement: Improved take-off and landing reliability with superior anti-interference performance for video transmission and satellite acquisition
• Strategic Placement Options: Can be deployed near high-rise buildings or communication towers with D-RTK 3 Relay installed at elevated locations

Advanced Drone Integration

• Compatible Aircraft: Works exclusively with the purpose-built Matrice 4D and Matrice 4TD drones
• Extended Flight Time: Up to 47 minutes of hover time and 54 minutes of forward flight
• Standalone Capability: Compatible with DJI RC Plus 2 Enterprise for independent operations outside the dock system
• Airborne Relay Function: One drone can fly high as a relay, extending the range of another drone without requiring 4G signal

Compatible Drones

The DJI Dock 3 is specifically designed to work with the Matrice 4D Series drones, which offer exceptional performance capabilities:

DJI Matrice 4D

• Wide-Angle Camera: 4/3 CMOS sensor with 20MP effective pixels, f/2.8-f/11, 24mm format equivalent, mechanical shutter
• Medium Tele Camera: 1/1.3-inch CMOS with 48MP effective pixels, f/2.8, 70mm format equivalent
• Tele Camera: 1/1.5-inch CMOS with 48MP effective pixels, f/2.8, 168mm format equivalent
• Laser Range Finder: 1800m measurement range with ±(0.2 + 0.0015 × D) accuracy
• Flight Performance: 47 minutes hover time and up to 54 minutes forward flying

DJI Matrice 4TD

• Wide-Angle Camera: 1/1.3-inch CMOS with 48MP effective pixels, f/1.7, 24mm format equivalent
• Medium Tele Camera: Same specifications as the Matrice 4D
• Tele Camera: Same specifications as the Matrice 4D
• Infrared Thermal Camera: 640×512 resolution, f/1.0, 53mm format equivalent, uncooled VOx microbolometer with UHR infrared image mode
• NIR Auxiliary Light: 6° FOV with 100m illumination distance
• Night Vision Capabilities: Features IR-Cut Filter for black-and-white night vision and 24/7 operations

DJI FlightHub 2

Enhanced Drone Management

• Intelligent Recognition: Automated detection of subjects, vehicles, vessels, and infrared temperature anomalies with real-time notifications
• Smart Tracking: Quick tracking capabilities for efficient follow-up monitoring
• Intelligent Change Detection: Periodic analysis of changes in specific areas, valuable for environmental protection, disaster relief, and structural monitoring
• Virtual Cockpit: Remote control interface with “Mouse Look” for rapid and precise camera adjustments

Efficient Operations

• Open and Fly: Rapid deployment with Fly-To Tasks that can reach a designated point 1 km away at 100m height within 100 seconds
• Low-Latency Live View: Significant engine upgrade reduces live view latency for reliable real-time decision-making
• Transmit While Flying: Real-time data transmission during flight with immediate data transfer upon landing
• Cloud-Based Dock Location Calibration: Remote setting of dock locations and task assignments, enhancing personnel efficiency
• Automated Routes: Pre-established flight routes for consistent monitoring across various scenarios

Advanced Mapping & Data Collection

• Smart 3D Capture Routes: Enhanced flight route planning options for detailed 3D modelling
• Geometric & Slope Routes: Specialised flight paths for complex terrain mapping
• 5-Direction Oblique Photography: Comprehensive aerial imagery capture for complete site documentation
• Real-Time Terrain Following: Adaptive flight paths that maintain consistent altitude above varying terrain

Security and Compliance

• Data Protection: ISO 27001 certified by BSI, ensuring high information security standards
• Custom Permission Management: On-premises version available for keeping customer data secure in an offline environment
• Flight Safety: Built-in flight termination system (FTS) with independent control link meeting MOC2511 requirements
• European Compliance: C6-Label certified, ensuring the Matrice 4D Series stays within its operational volume
• 4G Enhanced Transmission: DJI Cellular Dongle 2 provides private network deployment options for secure data transmission

Open Ecosystem & Comprehensive Accessories

• Intelligent Algorithm Developer: Model training tools and third-party developer certification for custom applications
• PSDK & E-Port Lite: Secure and reliable payload integration options
• Mobile SDK 5 (MSDK): Open-source development kit with production-ready code for app development
• Cloud Integration: Direct connectivity with third-party platforms through DJI FlightHub 2
• MQTT-based Cloud API: Access to drone hardware, video, and image data

Applications Across Ireland

Public Safety and Emergency Response

• Search and Rescue: Rapid deployment for locating missing persons in Ireland’s diverse landscapes
• Disaster Monitoring: Continuous monitoring of flood-prone areas and coastal regions
• Emergency Assessment: Quick situational awareness for first responders

Infrastructure Inspection

• Energy Sector: Remote inspections of wind farms along Ireland’s coasts and power lines across rural areas
• Roads & Bridges: Structural inspections of Ireland’s critical transportation infrastructure
• Construction: Site surveys, progress monitoring, and high-precision 3D mapping for projects throughout Ireland

Environmental Monitoring

• Coastal Surveillance: Monitoring Ireland’s extensive coastline for environmental changes
• Agricultural Management: Optimise crop management and irrigation planning across Irish farms
• Water Conservation: Monitor reservoirs, waterways, and flood-prone areas

The DJI Dock 3 represents a significant advancement in autonomous drone technology, offering Irish businesses and public service organisations a reliable solution for continuous aerial operations without human intervention. With its purpose-built Matrice 4D/4TD aircraft, robust weather resistance, and sophisticated automation capabilities, it delivers unprecedented operational efficiency across numerous industry applications.

For pricing information and additional product details, please contact Survey Drones Ireland at info@surveydrones.ie. The DJI Dock 3 is now available to purchase exclusively through Survey Drones Ireland, your trusted partner for enterprise drone solutions.
