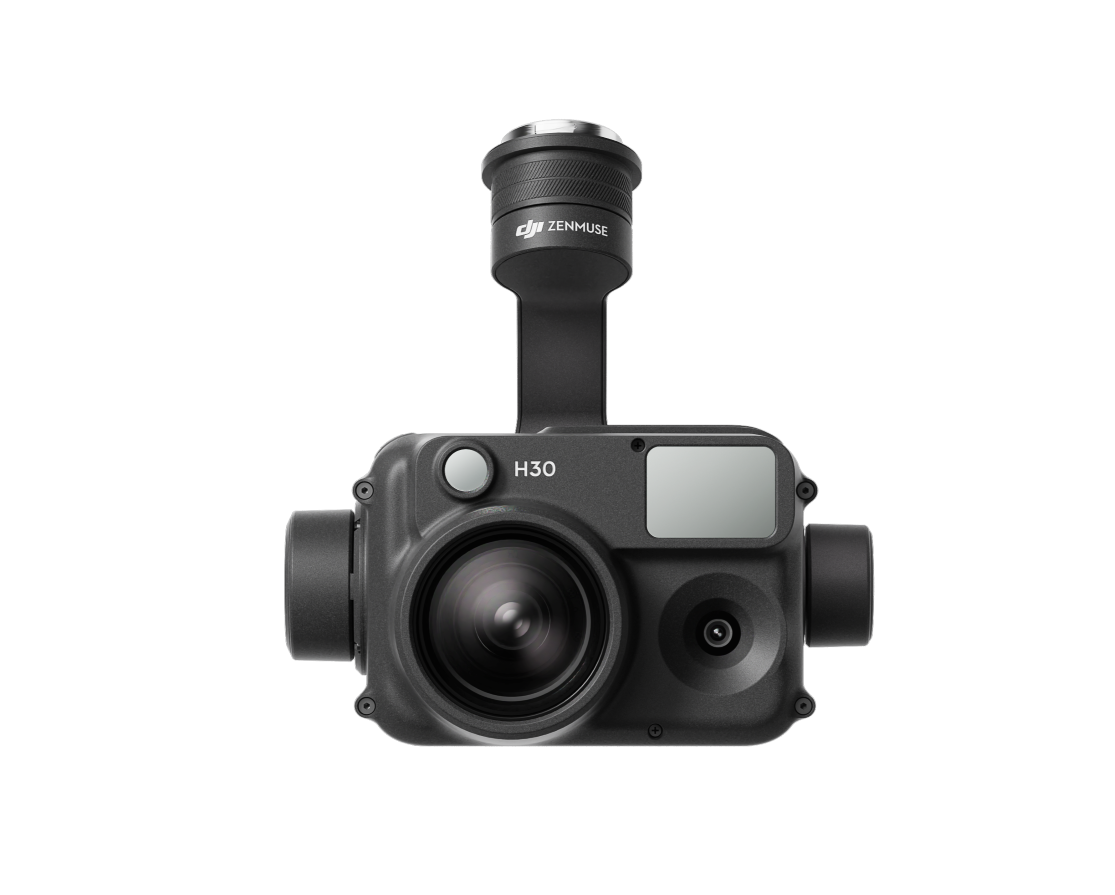

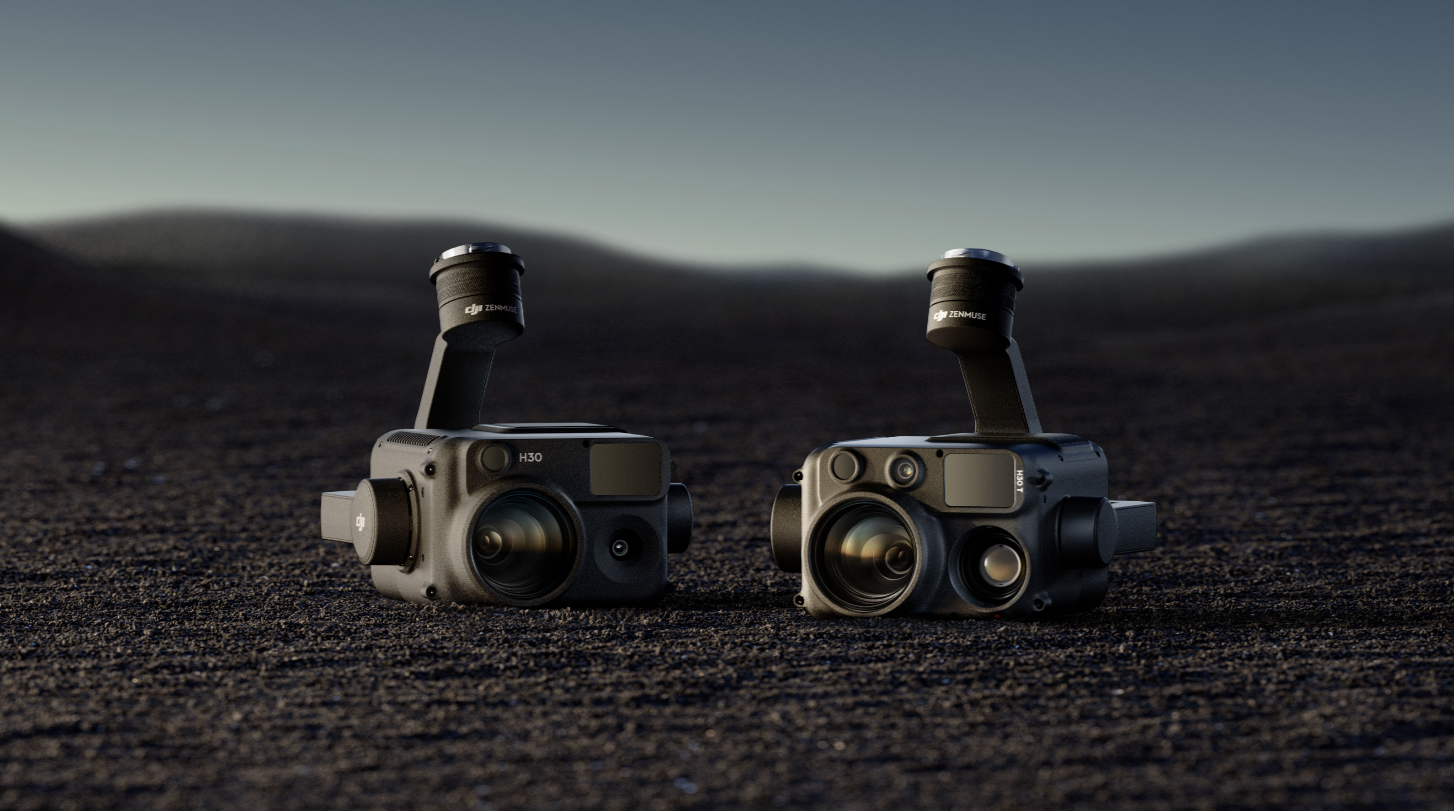

DJI Zenmuse H30 & H30T

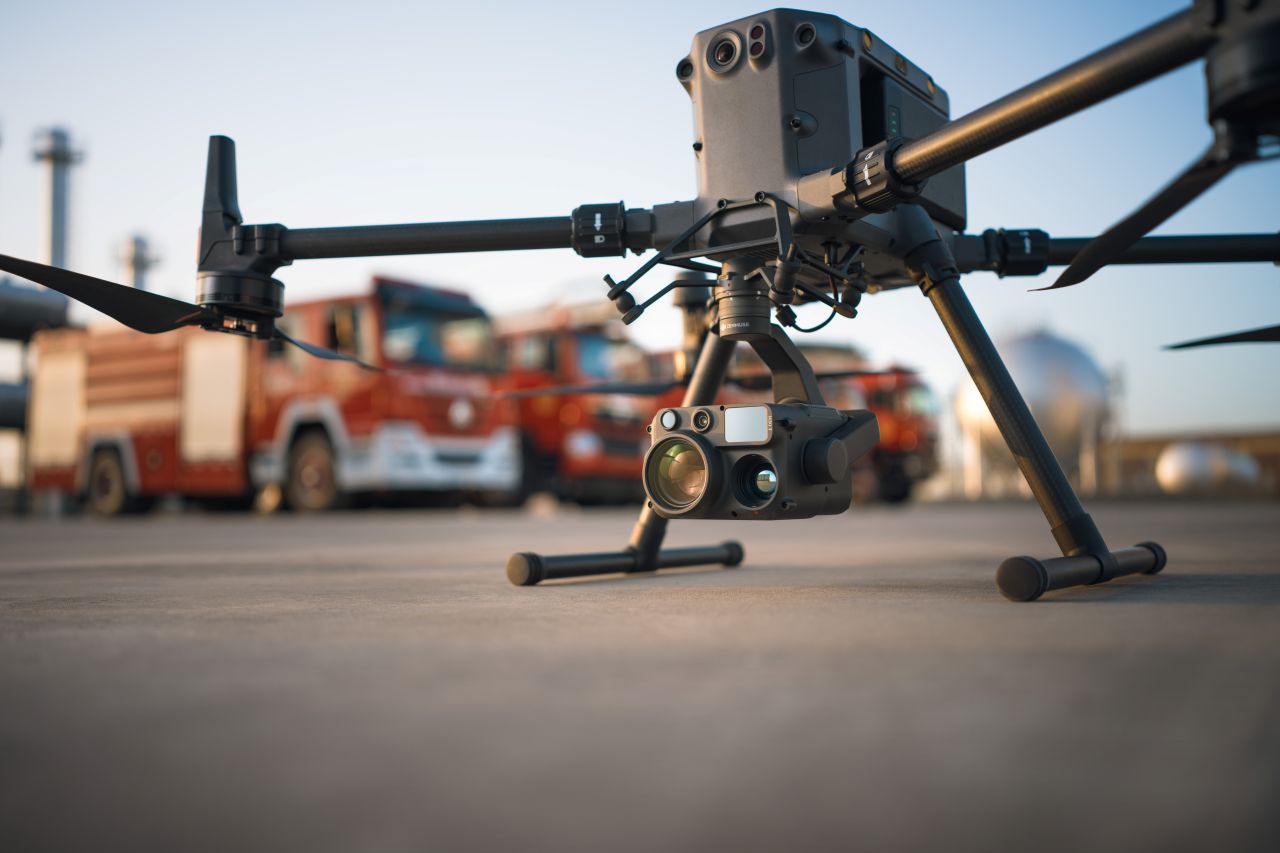

The DJI Zenmuse H30 is a revolutionary multi-sensor payload designed for the DJI Matrice 300 RTK and Matrice 350 RTK.
The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules:
Wide-Angle Camera
- Equivalent Focal Length: 24mm, DFOV:82.1°
- 48MP 1/1.3-inch CMOS Sensor
- Video Resolution: Max 3840×2160@30fps
Zoom Camera
- Up to 34x Optical Zoom and 400x Digital Zoom
- 40MP 1/1.8-inch CMOS Sensor
- Video Resolution: Max 3840×2160@30fps
Laser Range Finder
- Measurement Range:3-3000 m
- Measurement Accuracy:≤500 m ±(0.2 m+measurement distancex0.15%)>500 m: ±1.0m
Infrared Thermal Camera (H30T only)
- Equivalent Focal Length: 52mm, DFOV:45.2°
- Uncooled VOx Microbolometer
- Photo Resolution: 1280×1024
- Video Resolution: 1280×1024@30fps
- Temperature Measurement Range from -20°to 1600°C
NIR Auxiliary Light
- Wavelenght: 850nm
- FOV: 4.6±0.6°C (Round)
- Safety Rating: Class 1
- Illumination Range: Approx. 8m diameter circle at 100m distance
Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.
General
Dimensions – 170×145×165 mm (L×W×H)
Weight – 920±5 g
Power – H30: 26 W / H30T: 28 W
Ingress Protection Rating – IP54
Environment
Operating Temperature – -20° to 50° C (-4° to 122° F)
Storage Temperature – -20° to 60° C (-4° to 140° F)
Gimbal
Stabilization System – 3-axis (tilt, roll, pan)
Angular Vibration Range – Hover: ±0.002°, Flight: ±0.004°
Mounting – Detachable DJI SKYPORT
Mechanical Range – Tilt: -132.5° to +73° / Roll: ±60°/ Pan: ±328° (Structural limit, not controllable range)
Controllable Range – Tilt: -120° to +60° / Pan: ±320°
Operation Mode – Follow/Free/Re-center
Zoom Camera
Sensor – 1/1.8-inch CMOS, Effective Pixels: 40 MP
Lens – Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
Aperture: f/1.6-f/5.2, DFOV: 66.7°-2.9°
Electronic Shutter Speed – 1/8000-2 s
Video Resolution – Single Shot: 3840×2160@30fps, 1920×1080@30fps, Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
Wide-Angle Camera
Sensor – 1/1.3-inch CMOS, Effective Pixels: 48 MP
Lens – Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
Aperture: f/1.7, DFOV: 82.1°
Electronic Shutter Speed – 1/8000-2 s
Video Resolution – Single Shot: 3840×2160@30fps, 1920×1080@30fps, Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
Infrared Thermal Camera (H30T)
Thermal Imager – Uncooled VOx Microbolometer
Lens – Focal Length: 24 mm (equivalent focal length: 52 mm)
Aperture: f/0.95 DFOV: 45.2°
Digital Zoom Equivalent – 32×
Video Resolution – 1280×1024@30fps
Noise Equivalent Temperature Difference (NETD) – ≤ 50 mk@f/1.0
Laser Range Finder
Wavelength – 905 nm
Measurement Range – 3-3000 m Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m
Measurement Accuracy – ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
> 500 m: ±1.0 m
Laser Spot Size – @100 m: approx. 50×450 mm, @1000 m: approx. 450×4500 mm
NIR Auxiliary Light
Wavelength – 850 nm
FOV – 4.6±0.6° (Round)
Illumination Range – @100 m: Approx. 8m diameter circle
