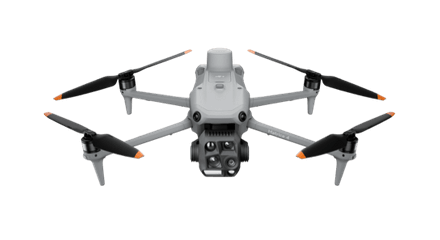

Matrice 4 Enterprise
Precision Mapping, Time-Saving and Effortless
Rapid 0.5-Second Interval Shooting
The Matrice 4E wide-angle camera supports rapid 0.5-second interval shooting in both orthophoto and oblique photography modes, enabling high-speed aerial surveying from multiple angles. Additionally, the mapping flight speed can reach up to 21 meters per second, [8] significantly enhancing work efficiency.
Smart 3D Capture, Precision Modeling
DJI Matrice 4E supports Smart 3D Capture, which allows you to capture and create a rough model on the remote controller. Based on the rough model, it can quickly generate precise mapping routes close to a structures surface, completing detailed measurements and modeling of irregular buildings. It also supports displaying virtual space routes and waypoint photos for smart 3D capture, making it convenient to assess specific routes’ flight safety and coverage area.
🚁 DJI Matrice 4T / 4E – Technical Specifications
Discover the complete technical breakdown of the DJI Matrice 4T and Matrice 4E, two of the most advanced enterprise UAV platforms designed for mapping, surveying, thermal imaging, and critical infrastructure inspection.
🛠️ Aircraft Overview
- Takeoff Weight: 1219 g (standard), 1229 g (low-noise props)
- Max Takeoff Weight: 1420 g (standard), 1430 g (low-noise)
- Max Payload: 200 g
- Dimensions: Folded – 260.6 × 113.7 × 138.4 mm, Unfolded – 307 × 387.5 × 149.5 mm
- Max Flight Speed: 21 m/s (EU-limited to 19 m/s in Sport Mode)
- Flight Time: Up to 49 mins
- Max Range: 35 km (no wind)
- Max Altitude: 6000 m (4000 m with payload)
- Wind Resistance: 12 m/s
- Operating Temp Range: -10°C to 40°C
- Positioning: GPS, Galileo, BeiDou, GLONASS (RTK-enabled)
📸 Multisensor Payload – Camera Systems
Matrice 4T (Multisensor Drone with Thermal Imaging)
- Wide: 1/1.3″ CMOS, 48 MP, 24 mm, f/1.7
- Medium Tele: 1/1.3″ CMOS, 48 MP, 70 mm, f/2.8
- Telephoto: 1/1.5″ CMOS, 48 MP, 168 mm, f/2.8
- Thermal: 640×512, 1280×1024 (Super Resolution), 28x Zoom
- Temp Range: -20°C to 550°C, Accuracy ±2°C or ±2%
- Laser Rangefinder: Up to 1800 m
Matrice 4E (Surveying Drone with RTK)
- Wide: 4/3″ CMOS, 20 MP, mechanical shutter
- Medium Tele & Telephoto: Same as 4T
- No thermal imaging
📷 Imaging & Video Features
- Photo Resolution: Up to 8192 × 6144
- Video: 4K (3840×2160 @30fps), Full HD
- Zoom: Up to 112x Hybrid
- Still Modes: Single, Interval, Smart, Panorama
- Formats: MP4 (H.264/H.265), JPEG / RAW
🧭 Obstacle Avoidance & Sensors
- Omnidirectional with 3D Infrared
- Range: Up to 200 m
- Speeds: 21 m/s (lateral), 10 m/s (downward)
- RTK Accuracy: ±1 cm (horizontal), ±1.5 cm (vertical)
🔋 Battery System
- Battery: Li-ion 4S, 6741 mAh, 99.5 Wh
- Flight Time: Up to 49 minutes
- Charging: Max 100W via USB-C PD
- Cycle Life: 200+
🎮 DJI RC Plus 2 Enterprise Controller
- Screen: 7.02”, 1920×1200, 1400 nits
- Battery: 3.8 hrs (internal), 7+ hrs with WB37
- OS: Android 11, 128 GB internal
- Transmission: O4 Enterprise – Up to 25 km
- Ports: HDMI, USB-A/C, microSD
🧩 Expansion & Accessories
- Beacon: Integrated
- Ports: E-Port & E-Port Lite (for PSDK devices)
- Optional Accessories: AL1 Spotlight, AS1 Speaker, RTK Module
- Mounting: Quick-release system
✅ Ideal Use Cases
- Commercial drone for inspection
- UAV for thermal imaging and firefighting
- Long-range drone for mapping missions
- Surveying drone with RTK
- Search and rescue, public safety, energy, agriculture
-
DJI Matrice 4E × 1
-
DJI Matrice 4 Series Battery × 1
-
DJI RC Plus 2 Enterprise × 1
-
DJI 100W USB-C Power Adapter × 1
-
DJI Matrice 4 Series Charging Hub × 1
-
microSD Card × 1
-
DJI Matrice 4E Gimbal Protector × 1
-
DJI Cellular Dongle 2 Pry Bar × 1
-
DJI Matrice 4 Series Propellers × 3
-
100W Power Adaptor AC Cable × 1
-
USB-C to USB-C Data Cable × 1
-
USB-A to USB-C Data Cable × 1
-
DJI Matrice 4 Series Storage Case × 1
-
DJI Matrice 4 Series Storage Case Shoulder Strap × 1
