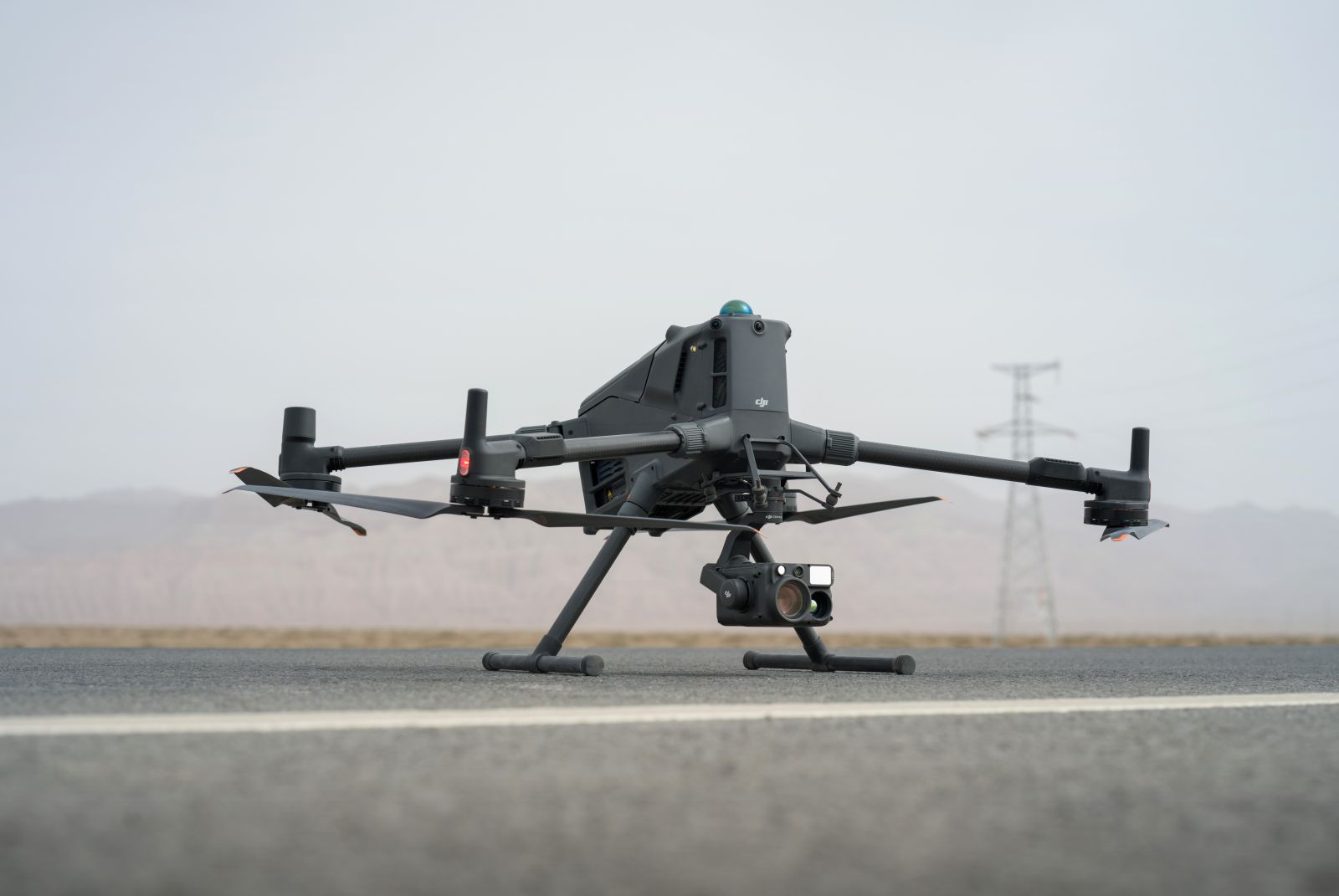

DJI Matrice 400
DJI Matrice 400
Heavy-Lift Enterprise Drone Platform
The DJI Matrice 400 is a flagship, heavy-lift enterprise drone specifically designed for complex and mission-critical aerial operations. Built to carry advanced payloads and operate reliably in demanding environments, the Matrice 400 therefore delivers exceptional endurance, flight stability, and operational flexibility for professional users.
Furthermore, the Matrice 400 is engineered for inspection, surveying, public safety, and specialist industrial missions, providing a dependable aerial platform where performance, safety, and operational resilience are essential. As a result, it is ideally suited to organisations that require consistent, high-quality results in regulated and high-risk operating environments.
Key Capabilities
Heavy-Lift & Multi-Payload Operations
- Designed to carry advanced sensor payloads, including high-resolution optical, thermal, LiDAR, and specialist mission equipment
- Supports complex data capture and inspection tasks in a single flight
- Ideal for projects requiring high sensor performance and extended operational reach
Extended Endurance & Stability
- Long flight endurance supports large-area coverage and extended inspection missions
- High wind resistance and stable flight characteristics for consistent data quality
- Suitable for offshore, utility, and industrial environments
Advanced Inspection & Survey Performance
- Enables safe standoff inspections of critical infrastructure
- Supports detailed asset condition assessment and high-accuracy data capture
- Reduces the need for multiple aircraft or repeated site visits
Enterprise Safety & Redundancy
- Advanced obstacle sensing and intelligent flight systems
- Redundant components and failsafe features designed for professional operations
- Built to support operations under regulated and risk-managed environments
Operational Flexibility
- Modular design allows rapid reconfiguration for different mission types
- Suitable for single-crew or team-based deployments
- Integrates with professional mission planning and data workflows
Designed for Mission-Critical Operations
The DJI Matrice 400 is purpose-built for organisations operating in regulated airspace and high-risk environments, making it a strong choice for enterprise operators, utilities, emergency services, and engineering teams.
Its combination of payload capacity, endurance, and reliability makes it an effective solution for large-scale inspections, specialist surveys, and advanced aerial data acquisition.
Typical Applications
- Utilities and energy infrastructure inspection
- Large-scale surveying and mapping
- Industrial and asset inspection
- Public safety and emergency response
- Environmental monitoring
- Specialist payload and sensor operations
For More Info Contact Us!
DJI Matrice 400 — Technical Specifications
Aircraft & Performance
- Flight Time: Up to 59 minutes forward flight (with typical payload) and ~53 minutes hover time (no wind).
- Max Horizontal Speed: 25 m/s (~90 km/h).
- Operating Temperature: -20 °C to 50 °C.
- Ingress Protection: IP55 weather-resistant design.
Size & Weight
- Weight (with battery): ~9.74 kg.
- Weight (without batteries): ~5.02 kg.
- Maximum Takeoff Weight: 15.8 kg.
- Dimensions (Unfolded): ~980 × 760 × 480 mm.
- Dimensions (Folded): ~490 × 490 × 480 mm.
Payload & Compatibility
- Maximum Payload: 6 kg total.
- Supports multiple payloads and up to seven simultaneous mounts via E-Port V2 connectors (depending on configuration).
- Compatible with DJI Zenmuse series payloads (e.g., H30/H30T, L2 LiDAR, L3 LiDAR,P1 mapping camera) and third-party sensors via SDK/PSDK.
Navigation & Positioning
- RTK GNSS Accuracy: ~1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical).
- Hover Accuracy: ±0.1 m with vision/RTK positioning.
- Built-in ADS-B In receiver for enhanced airspace awareness.
Sensing & Safety
- Obstacle Sensing:

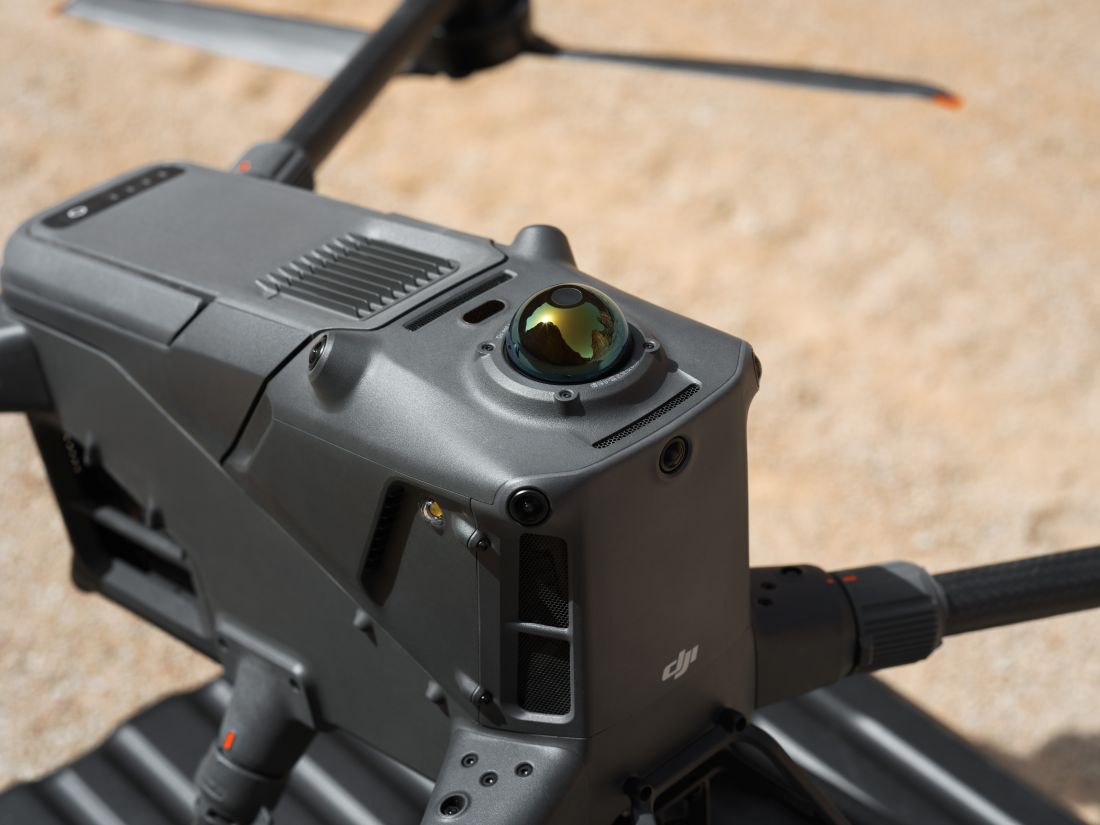

- 360° rotating LiDAR for wide-angle detection.
- mmWave radar for longer range sensing.
- Omnidirectional vision sensors for visual obstacle avoidance.
Transmission & Connectivity
- Video Transmission System: DJI O4 Enterprise Enhanced with up to 20 km (CE) range in unobstructed environments.
- Live 1080p/30 fps multi-channel video streaming.
- Supports dual cellular dongles and airborne relay communication for extended link reliability.
Batteries
- Intelligent Flight Battery: TB100 (20,254 mAh / 977 Wh).

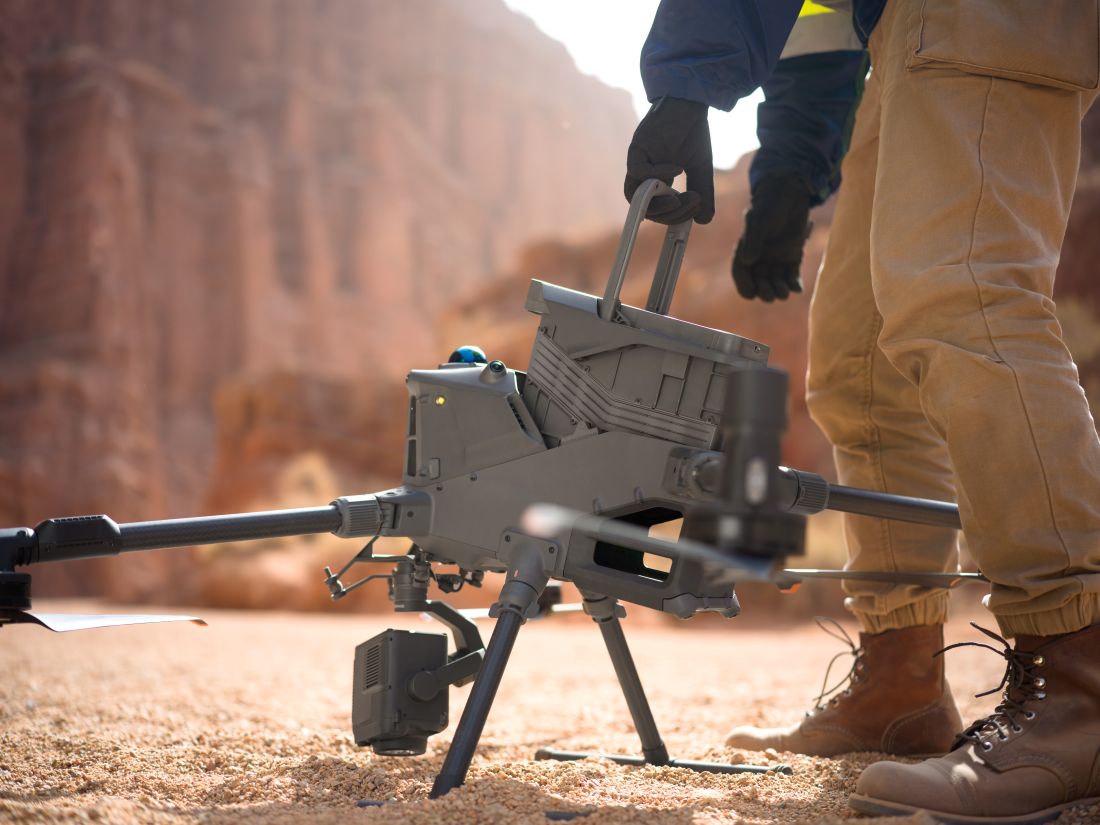

- Battery Hot-Swap: Supported (maintains GNSS position).

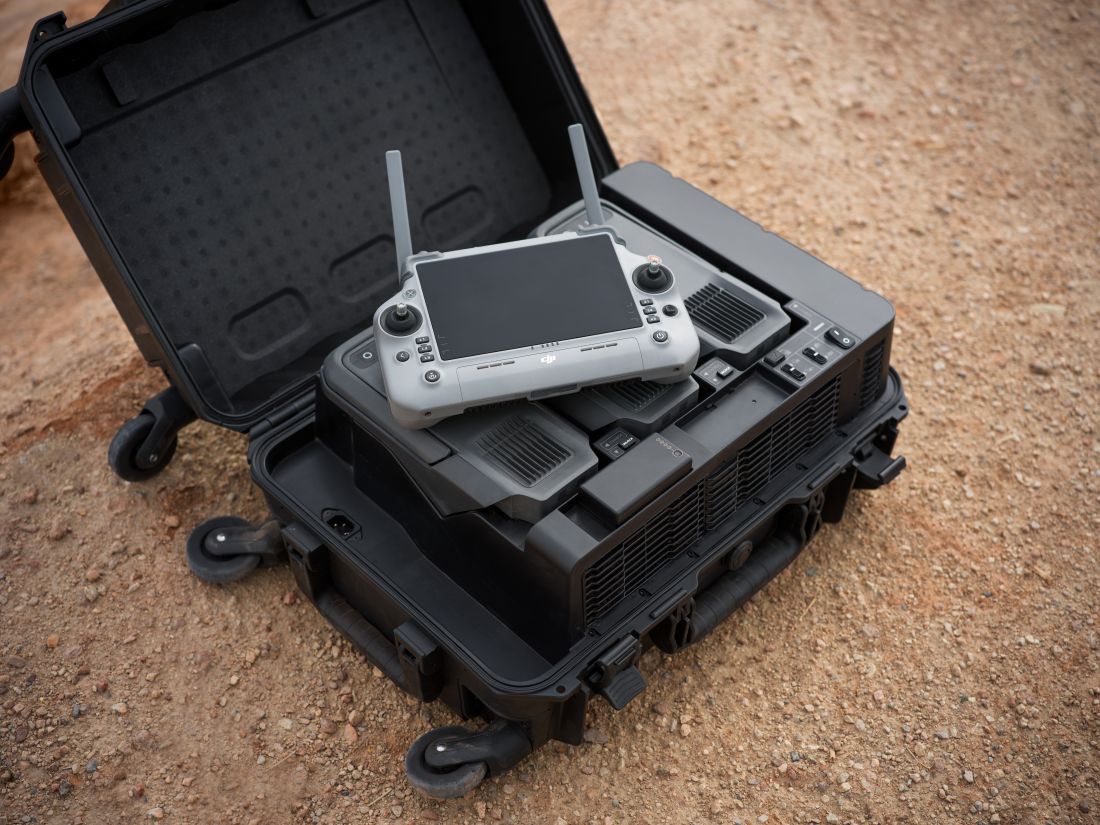

- Charging Stations: Compatible with Intelligent Battery Station for rapid and managed charging.
